TG-5700 Handheld High-precision Digital Ultrasonic Thickness Gauge with A/B Scanning

ضخامت سنج اولتراسونیک A/B اسکن TG-5700

Name: ضخامت سنج اولتراسونیک A/B اسکن TG-5700 | فروشگاه اینترنتی پترو پژوهش خاورمیانه
Price: 23500000000 IRR
Availability: InStock

قیمت اصلی: 245,000,000 تومان بود.قیمت فعلی: 235,000,000 تومان.

تخفیف : 10,000,000 تومان

( آخرین بروزرسانی : 5 آبان, 1404 )

دسته بندی : تجهیزات بازرسی غیر مخرب NDT, تجهیزات تست اولتراسونیک UT, ضخامت سنج اولتراسونیک

برند ها: HUATEC

بررسی اجمالی محصول

ضخامت سنج اولتراسونیک A/B اسکن TG-5700

ضخامت سنج اولتراسونیک A/B اسکن TG-5700 نوع جدیدی از ضخامت‌سنج اولتراسونیک دیجیتال دستی با دقت بالا و اسکن A/B است. این دستگاه از اصل اندازه‌گیری ضخامت اولتراسونیک بر اساس انعکاس پالس استفاده می‌کند. این دستگاه برای اندازه‌گیری ضخامت موادی مناسب است که می‌توانند موج اولتراسونیک را با سرعت ثابت در خود منتشر کرده و از پشت آن بازتاب دریافت کنند. وضوح اندازه‌گیری 0.001 میلی‌متر و محدوده اندازه‌گیری به نازکی 0.15 میلی‌متر (فولاد) است. این محصول می‌تواند صفحات و قطعات فرآوری شده را با دقت اندازه‌گیری کند. از سوی دیگر، می‌تواند میزان نازک شدن لوله‌ها و مخازن تحت فشار در تجهیزات تولیدی را پس از خوردگی در حین استفاده، کنترل کند. می‌توان از آن در نفت، صنایع شیمیایی، متالورژی، کشتی‌سازی، هوافضا، انرژی و سایر زمینه‌ها استفاده کرد.

این محصول با استانداردهای زیر مطابقت دارد: مشخصات کالیبراسیون برای ضخامت‌سنج اولتراسونیک (JJF 1126-200

نقد و بررسی : ضخامت سنج اولتراسونیک A/B اسکن TG-5700

ضخامت سنج اولتراسونیک A/B اسکن TG-5700

ضخامت‌سنج اولتراسونیک برای اندازه‌گیری ضخامت مواد فلزی و غیرفلزی طراحی شده است. این دستگاه به طور گسترده در نظارت بر خوردگی صنعتی، کنترل کیفیت تولید و کاربردهای اندازه‌گیری ضخامت استفاده می‌شود. این دستگاه مجهز به صفحه نمایش LCD با وضوح بالا است که عملکرد راحت و خواندن داده‌های واضح را فراهم می‌کند. این دستگاه اندازه‌گیری‌های با دقت بالا را با وضوح 0.1 میلی‌متر، 0.01 میلی‌متر و 0.001 میلی‌متر ارائه می‌دهد. نوع پراب این ضخامت‌سنج می‌تواند پراب تک کریستالی یا پراب دو کریستالی باشد. محدوده سرعت صوت این ضخامت‌سنج 400-19999 متر بر ثانیه است و دارای چهار حالت تشخیص از جمله فرکانس رادیویی (RF)، نیم موج مثبت (POS)، نیم موج منفی (NEG) و موج کامل (FULL) است. علاوه بر این، این ضخامت‌سنج با باتری 4*1.5 ولتی AA تغذیه می‌شود که می‌تواند برای مدت طولانی دوام بیاورد. ضخامت‌سنج اولتراسونیک انتخاب ایده‌آلی برای اندازه‌گیری ضخامت خوردگی و کنترل کیفیت در صنایع مختلف است.

PRODUCT DESCRIPTION

Product Description:

The Ultrasonic Thickness Gauge is designed to measure the thickness of metal and non-metal materials. It is widely used in the industrial corrosion monitoring, production quality control and thickness measurement applications. The device is equipped with a high resolution LCD display, providing convenient operation and clear data reading. It provides high accuracy measurements with resolution of 0.1mm, 0.01mm, and 0.001mm. The probe type of the gauge can be Single Crystal Probe or Double Crystal Probe. The sound velocity range of the gauge is 400-19999m/s, and it has four detection modes, including Radio Frequency (RF), Positive Half Wave (POS), Negative Half Wave (NEG) and Full Wave (FULL). Moreover, the gauge is powered by 4*1.5V AA battery, which can last for a long time. The Ultrasonic Thickness Gauge is the ideal choice for corrosion thickness measurements and quality control in various industries.

Features:

Product Name: Ultrasonic Thickness Gauge
Power Supply: 4*1.5V AA Battery
Certification: CE
Display: 3.5 “QVGA (320 × 240) Color TFT-LCD Screen
Weight: 0.31kg
Size: 204 X 100 X 36 (mm)
Function: Wall Thickness Measurement

Applications:

The HUATEC TG-5700 ultrasonic thickness gauge is a wall thickness gauge with a wide range of applications. It is designed with features such as accuracy, frequency, resolution, interface, and weight. It is an ideal tool for precision measurement of wall thickness, with accuracy of up to +/-0.001mm and measurement frequency of 4Hz, 8Hz, and 16Hz. It also features a resolution of 0.1mm, 0.01mm, and 0.001mm, as well as USB interface and a lightweight weight of 0.5kg. This ultrasonic thickness tester is ideal for use in a variety of industries, such as automotive, aerospace, and manufacturing. It is a reliable and durable tool for measuring wall thickness and ensuring accuracy and precision.

Specification Parameters

Item	TG-5700
Probe type	Single crystal probe / double crystal probe
Measuring range (45# steel)	0.15mm – 1800mm
Indication error(＜10mm)	±0.005mm
Indication error(≥10mm)	±0.1%
Repeatability error	±0.001mm(Self test)
Indication stability	Zero crossing and multiple echo technology are adopted to ensure that the thickness measurement value is not affected by echo strength, material attenuation coefficient, gain and gate height, and has high measurement stability and reliability.
Measurement frequency	4Hz,8Hz,16Hz
Resolution	0.1mm,0.01mm,0.001mm(0.01inch,0.001inch,0.0001inch)
Pulse generator	Negative square wave emission is adopted, and the pulse width and voltage are automatically matched with the probe.
Sound velocity range	400-19999m/s
Calibration block	4mm(steel)
Automatic shutdown	One can choose 5 minutes, 10 minutes, 20 minutes and manual shutdown.
Probe calibration	One point calibration, multi-point calibration
gain	Automatic gain control, Manual gain control
Gain range	0~70dB
Detection mode	Radio frequency (RF), positive half wave (POS), negative half wave (NEG), full wave (FULL)
Measurement mode	(1) MB-E: the measurement mode based on the transit time from the initial echo to the first bottom echo; (2) E-E: penetration coating measurement mode, the arbitrary Em–En echo is optional; (3) ME-E: multiple echo measurement mode; (4) THIN: thin wall measurement mode;
Numerical mode	Thickness value mode, difference / reduction rate mode, maximum / minimum value mode
A-scan mode	Available
B-scan mode	Available
Coupling indication	Available
Battery Indication	Available
Language	English
Unit	mm/inch
Menu operation	Available
Software function	Dynamic gate setting, blanking setting (Blank), echo blanking setting (E-blank), echo freezing, echo translation and scaling
Storage function	It can store 100,000 thicknesses (100 groups, 1000 in each group), 500 groups of A-scan waveforms and 500 groups of B-scan waveforms at the same time.
Host program upgrade	Available
Display	3.5 “QVGA (320 × 240) color TFT-LCD screen
Data transmission	It supports USB3.0 serial communication and transmits data to the computer.
Working temperature	-10℃～＋50℃; With special requirements, it can reach – 20 ℃;
Working voltage	Four No. 5 AA batteries are required. When the power is insufficient, there is a low voltage prompt.
Overall dimension	204 x 100 x 36 (mm)
Total Weight	310 g(Without battery)

Technical Parameters:

参数	详情
Probe Connector	LEMO
Working Temperature	-10°C To +50°C
Power Supply	4*1.5V AA Battery
Size	204 X 100 X 36 (mm)
Display	3.5 “QVGA (320 × 240) Color TFT-LCD Screen
Sound velocity range	400-19999m/s
Resolution	0.1mm,0.01mm,0.001mm
Interface	USB
Measurement mode	(1) MB-E: The Measurement Mode Based On The Transit Time From The Initial Echo To The First Bottom Echo; (2) E-E: Penetration Coating Measurement Mode, The Arbitrary Em–En Echo Is Optional; (3) ME-E: Multiple Echo Measurement Mode; (4) THIN: Thin Wall Measurement Mode;
Detection mode	Radio Frequency (RF), Positive Half Wave (POS), Negative Half Wave (NEG), Full Wave (FULL)

Customization:

Ultrasonic Thickness Gauge – HUATEC TG-5700

This ultrasonic thickness gauge is a high precision corrosion thickness gauge used to measure the thickness of various materials. It is a reliable and accurate solution for measuring the thickness of objects from 0.15mm – 1800mm with an accuracy of +/-0.001mm.

The HUATEC TG-5700 ultrasonic thickness gauge features 4 measurement modes: (1) MB-E: The Measurement Mode Based On The Transit Time From The Initial Echo To The First Bottom Echo; (2) E-E: Penetration Coating Measurement Mode, The Arbitrary Em–En Echo Is Optional; (3) ME-E: Multiple Echo Measurement Mode; (4) THIN: Thin Wall Measurement Mode.

This corrosion thickness gauge is also compact and lightweight, measuring 204 X 100 X 36 (mm). It also comes with a LEMO probe connector.

If you are looking for an ultrasonic thickness tester, the HUATEC TG-5700 ultrasonic thickness gauge is the perfect solution for your needs.

Support and Services:

Ultrasonic Thickness Gauge Technical Support and Service

We provide technical support and service for Ultrasonic Thickness Gauge. Our experts are available to help with setup, troubleshooting, and maintenance of your Ultrasonic Thickness Gauge.

Installation and setup
Troubleshooting and repair
Maintenance and calibration
Product training and consultation

Packing and Shipping:

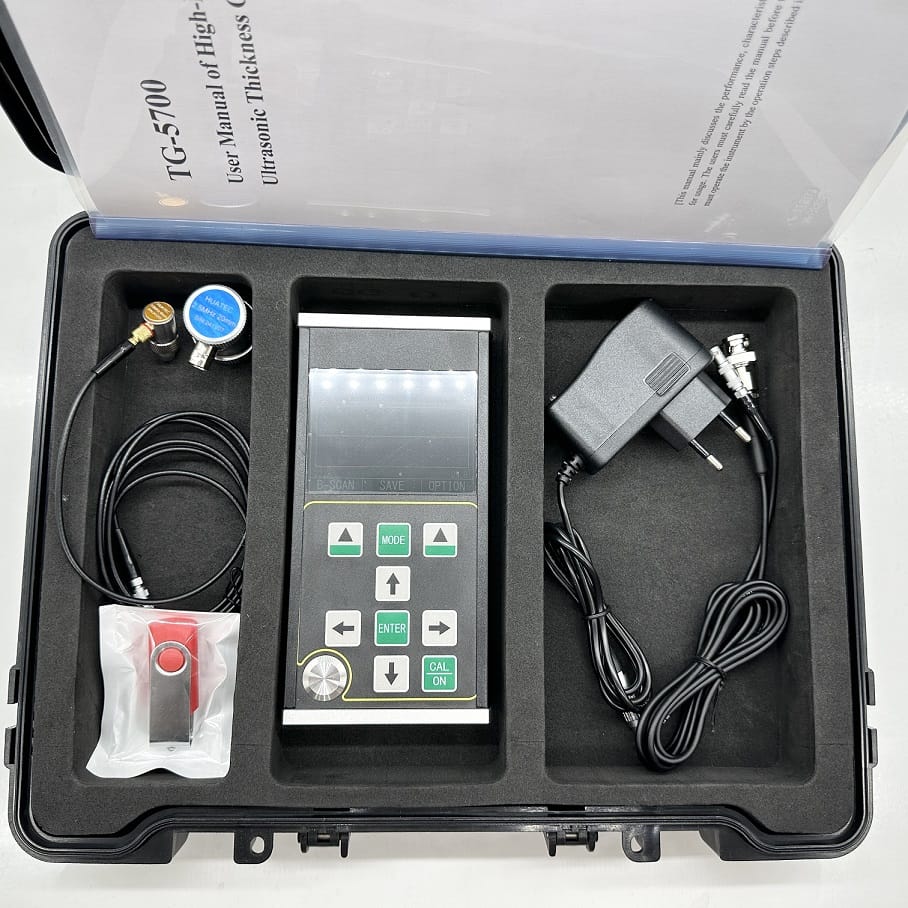

The Ultrasonic Thickness Gauge is packaged and shipped with the following:

User Manual
Calibration Certificate
Carrying Case
Ultrasonic Probe
Power Supply
Batteries
Transducer Cable

Optional probe:

TS400 Double crystal probe	10Mhz	5mm	0.5-50mm
TS500 Double crystal probe	5Mhz	5mm	1.0-65mm
TS510 Double crystal probe	5Mhz	10mm	1.0-500mm
DTM15 Single crystal probe	15 MHz	6mm	0.15-22.5mm
DTM7.5 Single crystal probe	7.5Mhz	6mm	0.5-22.5mm
DTM10 Single crystal probe	10Mh	6mm	0.3-22.5mm
DTM5 Single crystal probe	5M	6mm	1.0-22.5mm
BD510 Single crystal probe	10Mh	10mm	1-1000mm
BD212 Single crystal probe	2MHz	12mm	4-1800mm
Double crystal probe cable
Single crystal probe cable

FAQ:

Q1: What is Ultrasonic Thickness Gauge?

A1: Ultrasonic Thickness Gauge is a device produced by HUATEC, model number TG-5700, which is made in China. The device is used to measure the thickness of materials such as metals, plastics, and ceramics.

Q2: What materials can Ultrasonic Thickness Gauge measure?

A2: Ultrasonic Thickness Gauge can measure the thickness of materials such as metals, plastics, and ceramics.

Q3: What are the features of Ultrasonic Thickness Gauge?

A3: Ultrasonic Thickness Gauge produced by HUATEC, model number TG-5700, has features such as high accuracy, portability, and long battery life.

Q4: What is the measuring range of Ultrasonic Thickness Gauge?

A4: The measuring range of Ultrasonic Thickness Gauge is between 0.15mm – 1800mm.

Q5: Is Ultrasonic Thickness Gauge water-resistant?

A5: Yes, Ultrasonic Thickness Gauge produced by HUATEC, model number TG-5700, is water-resistant.
